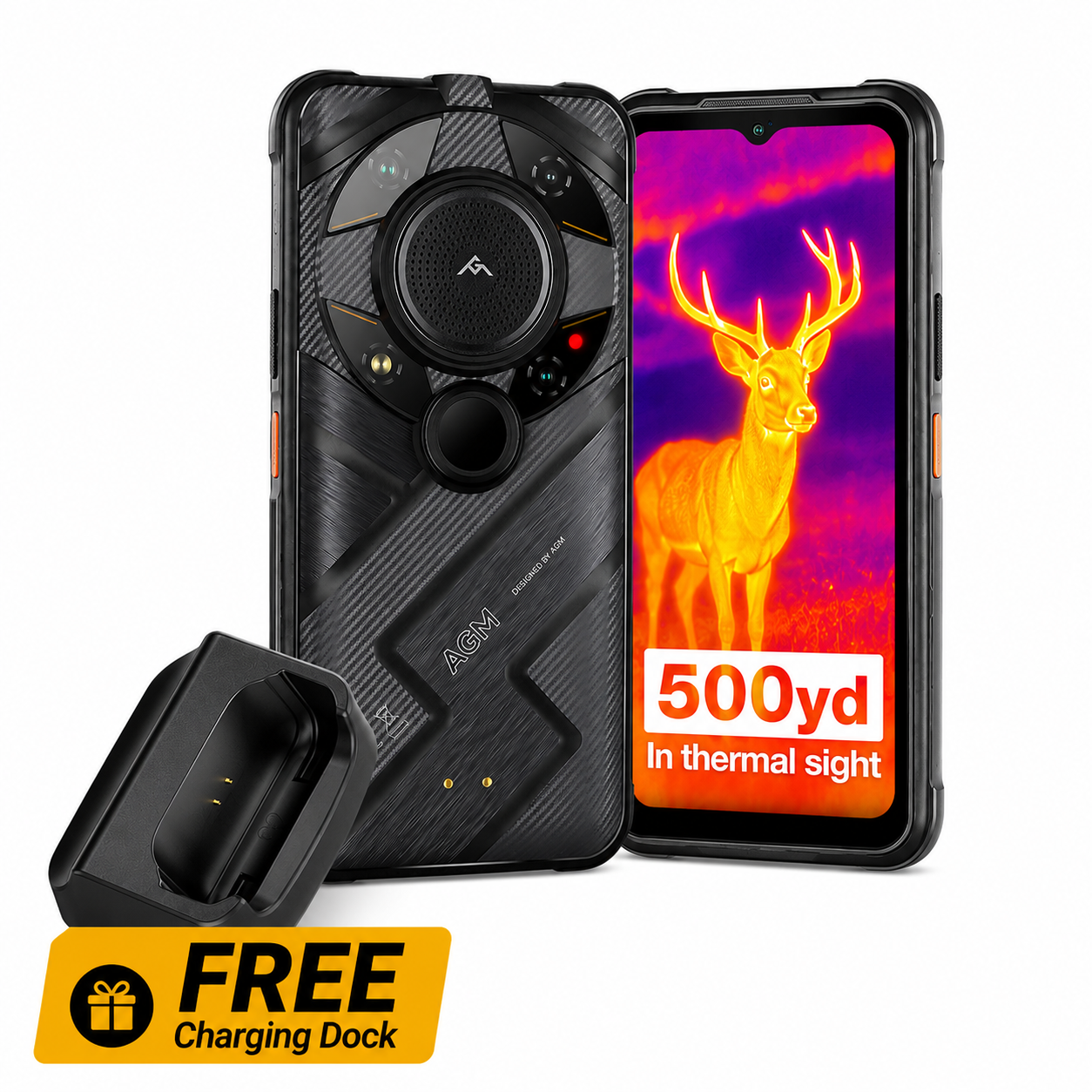

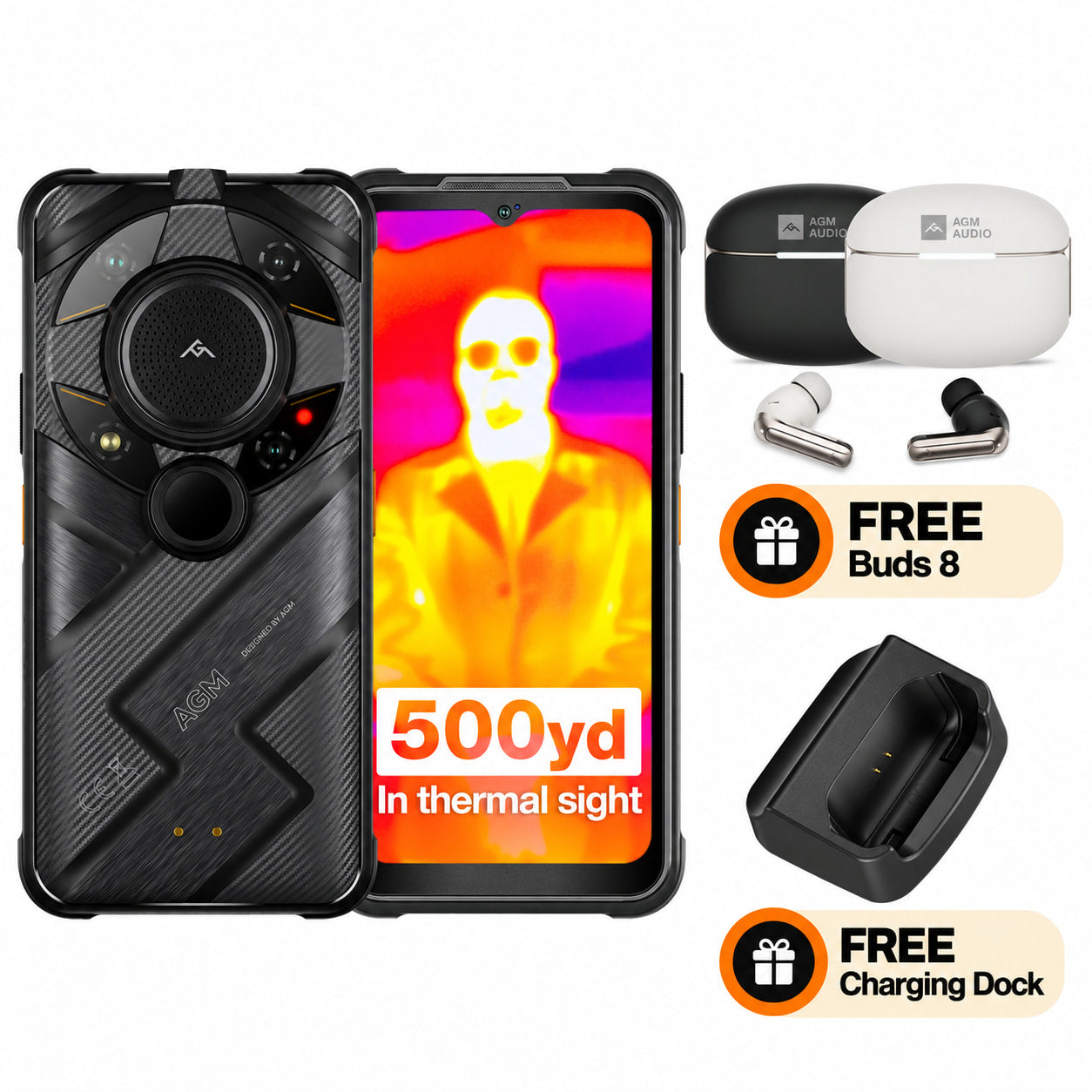

AGM G2 Guardian | 5G Unlocked Rugged Smartphone | Thermal Monocular Long Detection Range: 500m/yd| 10 mm Objective Lens
Thermal Monocular
Working Temperature: -10°C to 60°C (-14°F to 140°F)
Interface: USB Type-C
Highest Temperature Spot Tracking: Yes
Lowest Temperature Spot Tracking: Yes
Average Temperature Spot Tracking: Yes
Refresh rate: Sensor 25 Hz
Aperture: F1.0
Resolution: 256×192
Detection Range (6' object): 500m/yd
NETD: Less than 60 mk (@25°C), F#=1.0
Lens (focal length): 10 mm
Power: 3.3 V±0.3V<0.6W
Field of view (H × X): 17.5° × 13.2° (H × V)
Record Video: On-board video recording
Capture Snapshot: Yes
Battery Operating Time: Up to 8 hours continuous running (with Wi-Fi hotspot function off)
Protection Level: IP68/IP69K/MIL-STD-810H
Magnification: 5x
Pixel Interval: 12μm
Multi Language menu: Yes
Drop Test Height: 1.5m (4.9 feet)
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Standard Frequency Band
2/3/4G
Band
GSM: 850,900,1800,1900 CDMA:BC0, BC1, BC10 WCDMA: B1,B2,B4,B5,B6,B8,B19 LTE-FDD: B1,B2,B3,B4,B5,B7,B8,B12,B13,B17,B18,B19,B20,B25,B26,B28AB,B66、B71 LTE-TDD: B34 B38 B39 B40 B41
CA
MIMO: 4*4
LTE Cat/Max Speed
DL:cat18 MAX 1.2Gbps(DL 256QAM) UL:cat18 MAX 200Mbps(UL 256QAM)
5G
Band: n1, n2, n3, n5, n7, n8, n28, n41, n66,n71, n77, n78,n79
NSA: Support, Option 3x/3a
SA: Support, Option 2
MIMO: n1/n2/n3/n7/n66/n77/n78/n79 Four Downstream, Single Upstream, n41 Four Downstream, Dual Upstream
SRS
SA SRS: n41:2T4R,n77/n78/n79:1T4R NSA SRS:n41/n77/n78/n79 1T4R
HPUE: n41/n78/N79: Total Power 26dBm
EN_DC
CA
Sim mode
Dual Sim Requirements: Support
Sim Switch: Support
Voice
WCDMA WB: Support
VOLTE: Support
VONR: Support
ID Design
Size: 177.5mm*85.3mm*25.3mm
Weight: 405g
AI button: Support
Operation System:Android S Original Android
Chipset
Chipset: Qualcomm QCM6490
CPU: Kryo 670
GPU: Anreno 643
Card slot
Card Slots: Two out of three
SIM Card Hot Swap:Support
Storage
Capacity: UFS2.2, 8G+256G & 12G+256G
Expandable Storage (TF Card):Support , 512G
Screen
Size: 6.58'
Resolution: FHD+
Refreshing Rate: 120HZ
Touch Screen
Touch type: INCELL
Cameras
Pixels
108MP Rear Camera
20MP Infrared night vision Camera
2MP Macro Camera
256*192 Thermal Camera (10mm lens)
sensor: TBD
Flashlight: Support
Front Camera
Pixels: 32M
sensor
Other cameras requests
Top Torch Modular: Support
Sensor
Light Sensor: Support
Distance sensor: Support
Gravity Acceleration Sensor: Support
Geomagnetic sensor: Support
Fingerprint recognition sensor: Support, on side-key
Gyro sensor: Support
I/O interface
Interface Type: TYPE-C,waterproof 3.0
OTG Function: Support
DP: Support
Type: 3.5mm
Sound
MIC: Dual-mic
PA: 3.5W Speaker
Stereo: Not Support
Motor: Support
Speaker Effect: Default algorithm
Headphone Effect: No
Speaker: AGM Iconic Speaker
Direction: Back
WLAN agreement: 802.11a/b/g/n/ac/ax
satellite positioning
satellite positioning: GPS, GLONASS, Compass navigation system
Dual Frequency Positioning: Support
Other wireless functions
Bluetooth: V5.2
NFC: Support
Wireless charging: Support, 10W
Accessibility
Charging dock: Support, contact form, mutually exclusive with Type-C charging
Touch key category: virtual
Front and rear camera working status indicators: Support
Battery
capacity: 7000mAh
installation method: built-in
Fast Charging: Support, 18W
Dock Charging: Support
Durability requirements
Operating temperature: -20°C~60°C
Degree of protection: IP68/IP69K/810H
