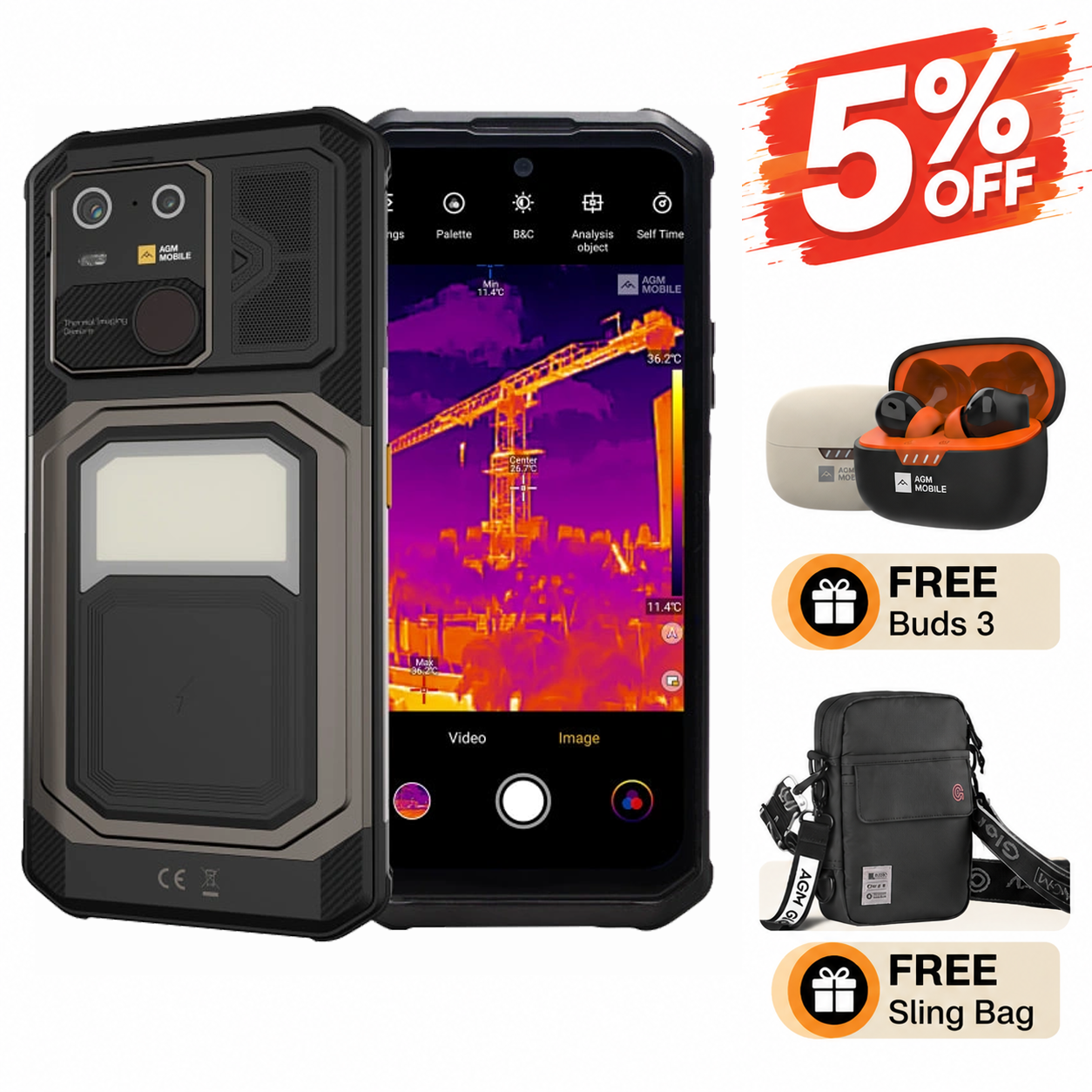

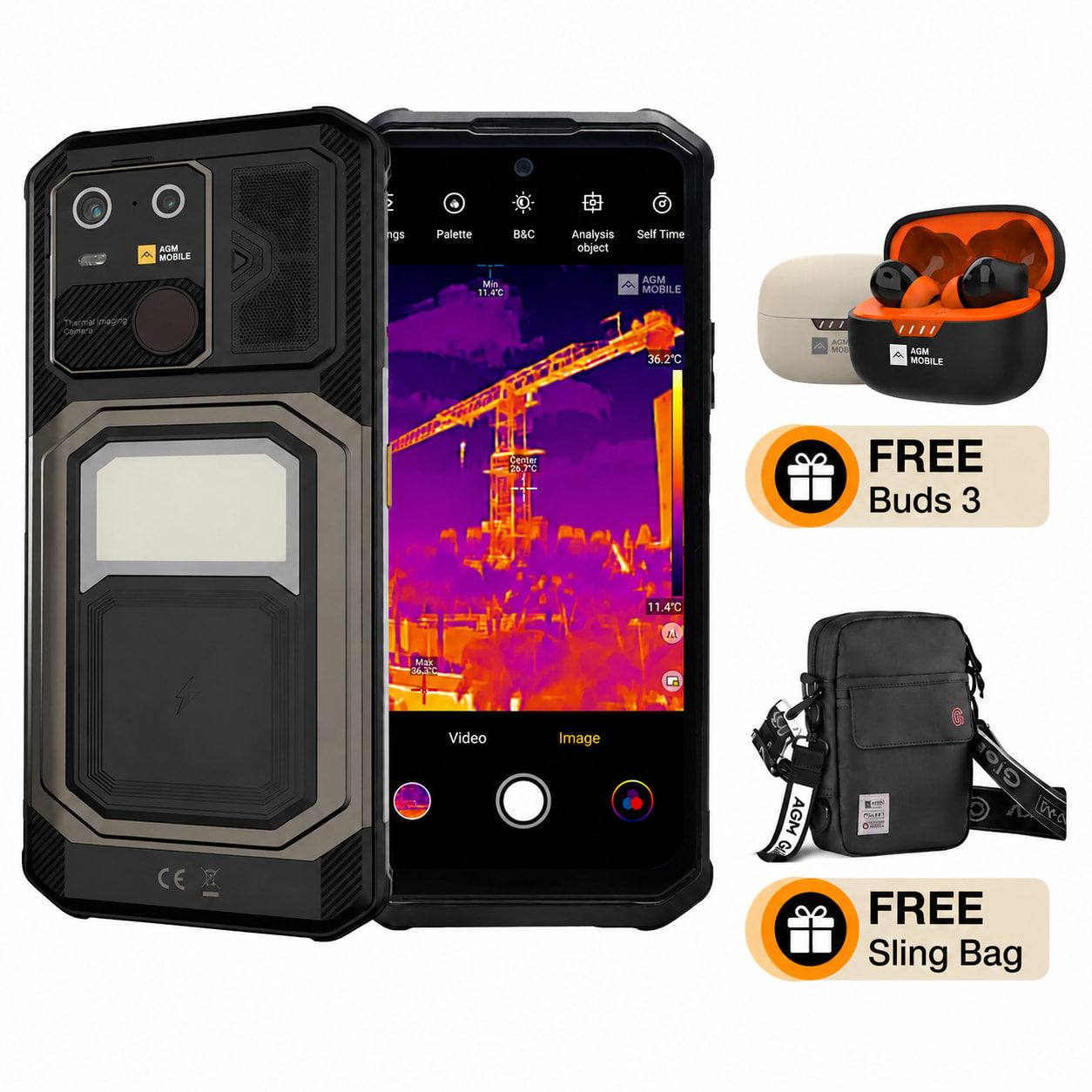

AGM G3 PRO |Thermal Imaging Rugged Smartphone| 12GB+512GB|10000mAh Battery|120Hz Display|MIL-STD-810H

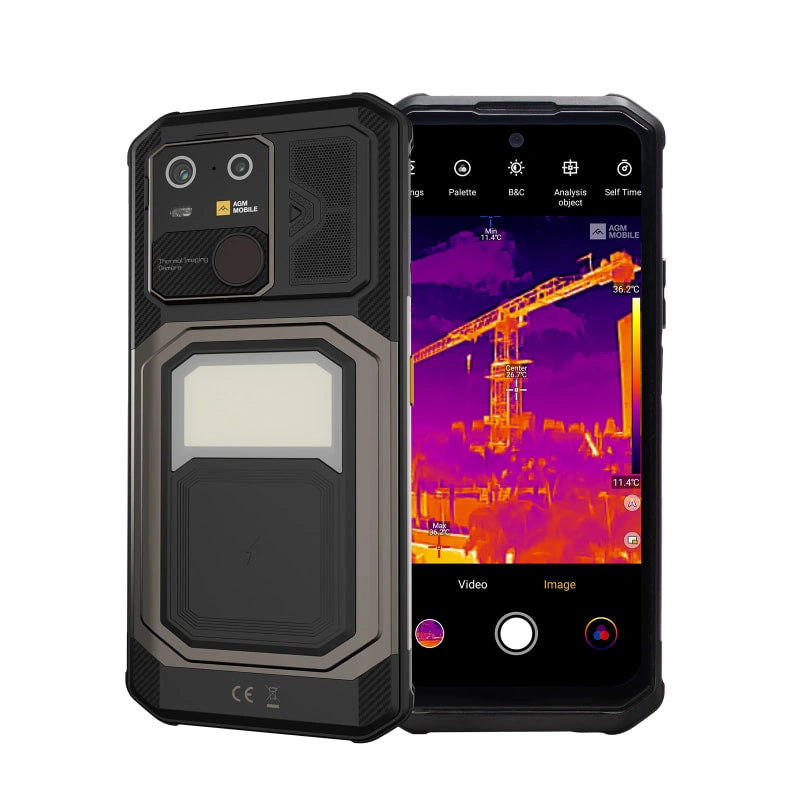

AGM G3 Pro: Thermal Imaging Meets Rugged Performance
The AGM G3 Pro is a thermal imaging rugged smartphone built for outdoor work and demanding environments. With 12GB RAM and 512GB storage, it combines practical thermal imaging with a 10000mAh battery, a smooth 120Hz display and MIL-STD-810H durability.
When your day takes you from everyday tasks to field work, the G3 Pro keeps thermal imaging and smartphone functions together in one rugged device.
Key Features
- Built-in thermal imaging: View heat patterns for inspection and outdoor tasks.
- 10000mAh battery: High-capacity power for extended use between charges.
- 120Hz display: Smooth scrolling and responsive visuals.
- 12GB RAM + 512GB storage: Room for apps, photos and work files.
- MIL-STD-810H: Rugged durability for demanding use.
Frequency Bands
2/3/4G
2G:B2/B3/B5/B8
3G:B1/B2/B4/B5/B8
4G(LTE):LTE:B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B26/28AB/B38/B39/B40/B41/B66

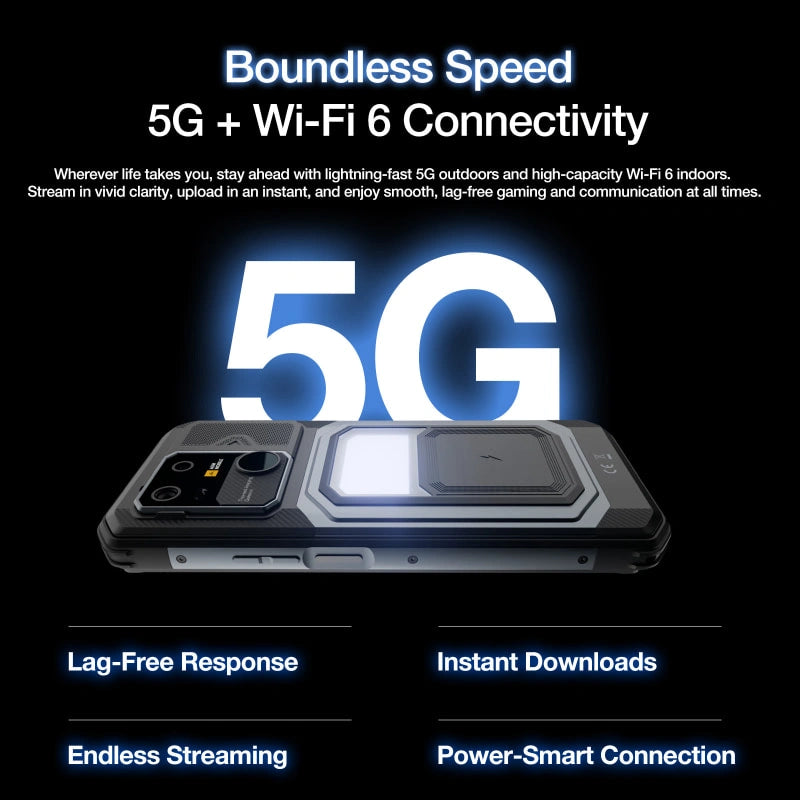

5G(SA):n1/2/3/5/7/8/20/26/28/38/40/41/66/77/78
CDMA:Not Supported
LTE CA:Refer to ENDC-CA List
LTE-MIMO:B1/B3/B5/B8/B40/B41
Card Mode
Dual SIM Requirement:TF Card + Dual Nano SIM / Dual Standby
Primary/Secondary SIM Switching:Supported
Design

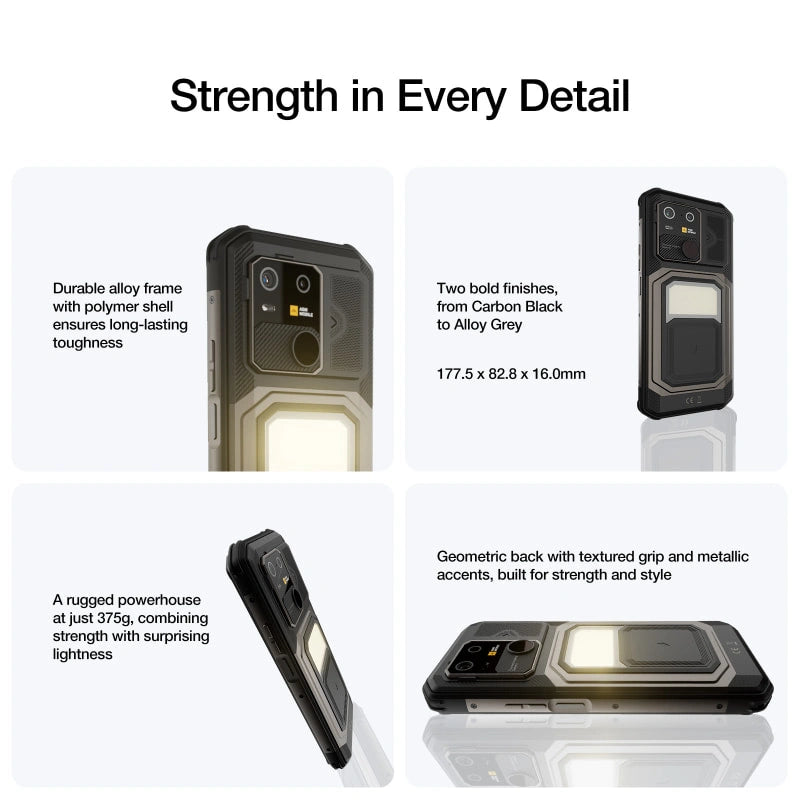

Dimensions: 177.5*82.8*16.0（max18.1）
Weight:375g
Ai Button:Supported
Operating System
Operating System Version：Android 15
CPU
Platform Name:MTK7300 (24M) — MT6878V/ZA (Main Frequency: 4A78@2.5GHz + 4A55@2.0GHz)
Card Slot
Number of Card Slots :Three-Choice Two (Nano + Nano + MicroSD)
SIM Hot-Swap: Supported
Storage
Capacity:12G（LPDDR4X）+512G
Expandable Storage (TF Card):Supported
Display
Screen Size: 6.72"/FHD+
Resolution:1080*2400(RGB)
Brightness: 9-point Average Brightness Min: 400 / Typ: 450
Other Feature Requirements:120Hz, Centered Punch-Hole Screen
Touchscreen
Touch Type:INCELL Cover Glass: Panda
Other Requirements:2.5D / Surface AF / Surface Hardness ≥7H (750g)
Rear Camera
Pixel: 64MP Main Camera + 2MP Macro
Sensor: Sony: IMX682-AAJH5-C (1/1.73)
Flashlight: Supported
Front Camera
Pixel:50M
sensor:OV50D40
Flashlight:Not Supported
Other Camera Requirements

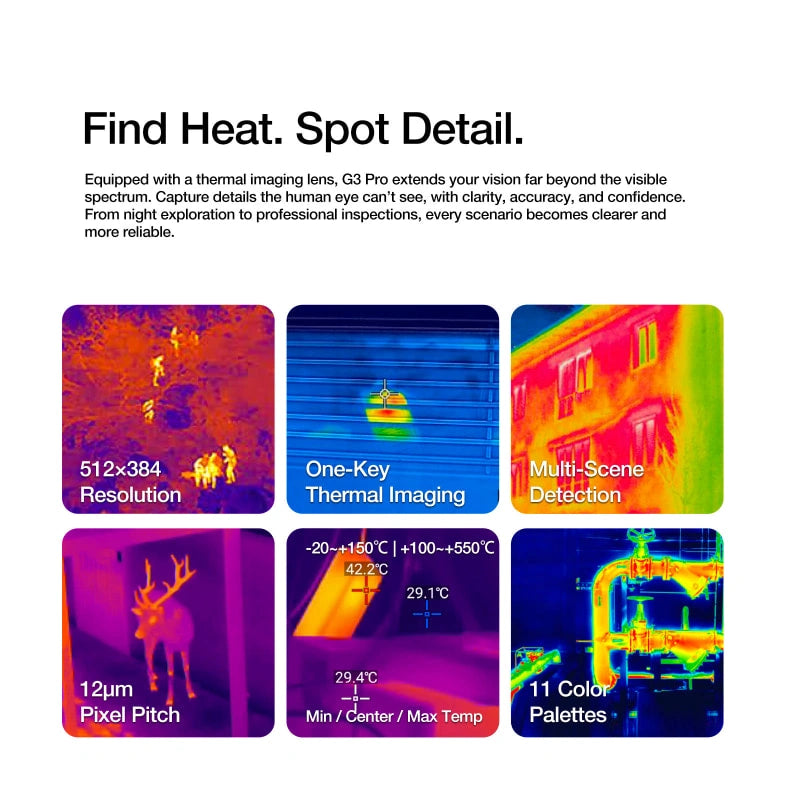

Thermal Imaging Camera: Supported (Super Resolution 512×384, 12μm Pixel Size, 3.2mm Focal Length)
Sensor-Related
Ambient Light Sensor: Supported
Proximity Sensor: Supported
Accelerometer: Supported
Magnetometer: Supported
Fingerprint Sensor: Supported
Gyroscope: Supported
Hall Switch: Not Supported
Encryption Chip: Not Supported
I/O Interface
Interface Type: USB2.0/Type-c
OTG Function: Supported
DP: Not Supported
Headphone Jack Type: 3.5mm Headphone Jack (CTIA Standard)
Audio
MIC : MEMS Silicon Microphone (Goertek S15OB381-155) / 2 pcs
PA: AW88396FOR with DSP, 5.7W
Stereo Sound: Not Supported
Motor: Linear Motor
Third-party Audio Effects: None
Headphone Audio Effects: None

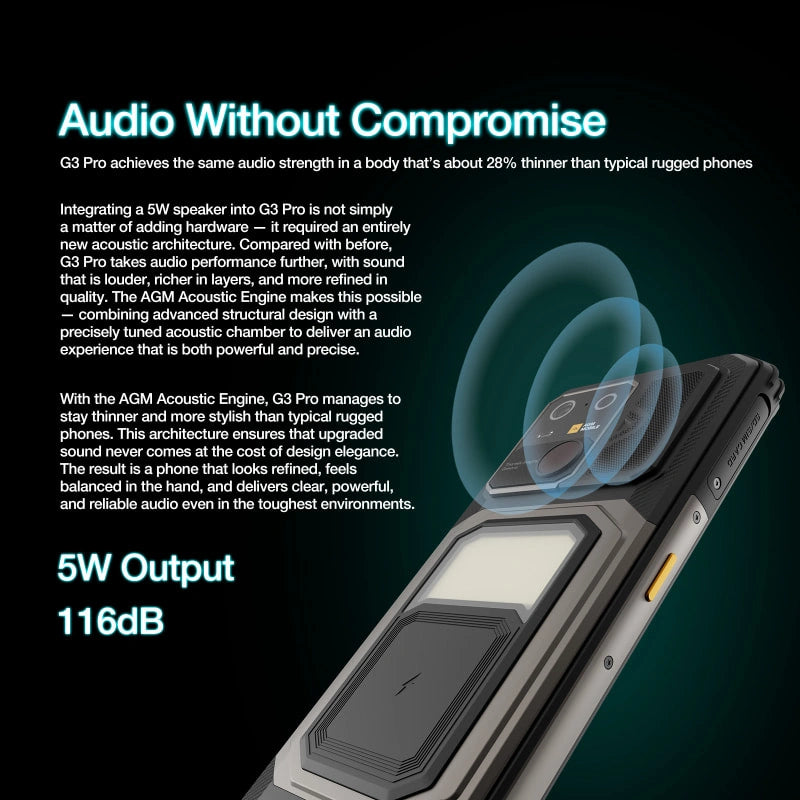

Speaker: 3820 BOX Speaker / 4.0W (Max 5.0W)
Sound Output Direction: Rear
Satellite Positioning
Satellite Positioning: GPS/AGPS+Glonass+Galileo
Dual-band Positioning: Not Supported
Differential Positioning: Not Supported
Other Wireless Functions
Bluetooth: 5.2
Wi-Fi: 802.11 a/b/g/n/ac 2.4G/5.0Ghz/
Infrared: Not Supported
NFC: Supported
Wireless Charging: Supported; 18W
FM Radio: Supported (FM via headphones)
Accessibility Features
Indicator Light: Not Supported
Dock Charger: Not Supported
Ministry of Public Security Certification (Dual System) : Not Supported
Touch Key Type: Virtual

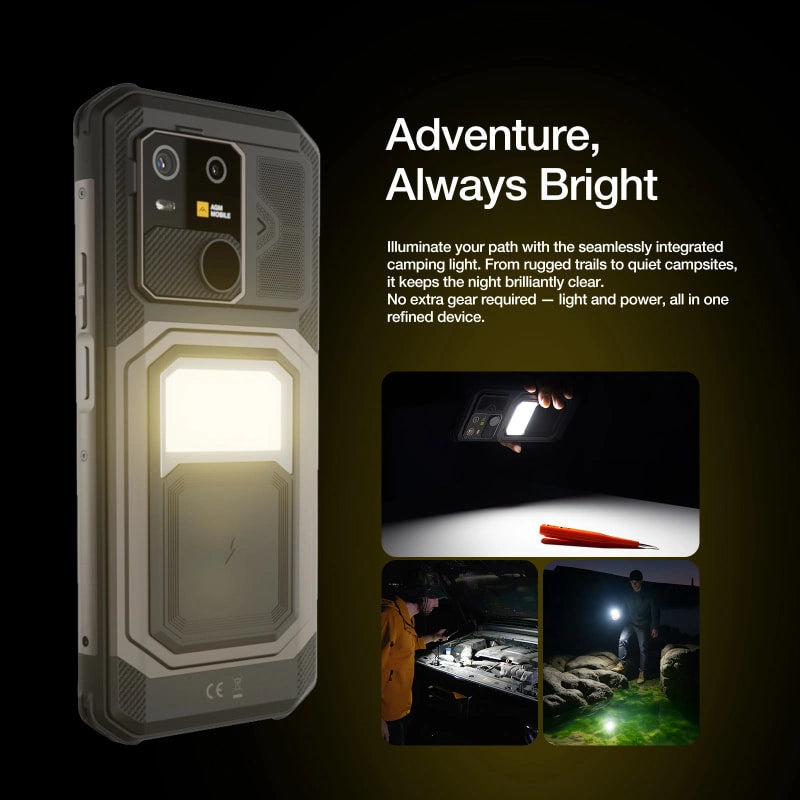

Camping Light: Supported
Key Backlight: Not Supported
Front/Rear Camera Status Indicator Light: Not Supported
Battery

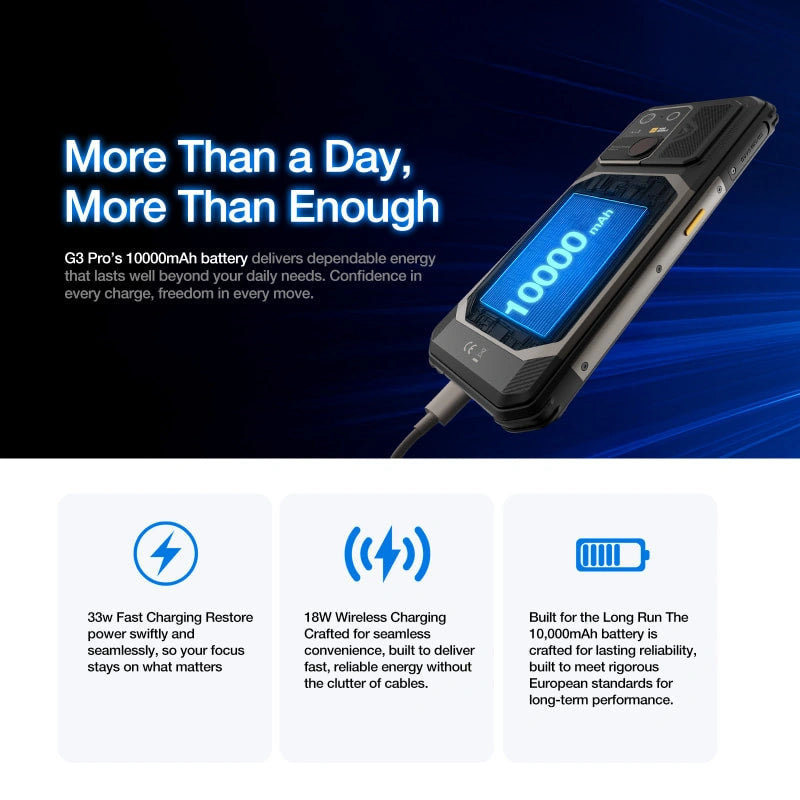

Capacity: 10000mAh (Rated Capacity)
Installation Method: Supported, Built-in
Fast Charging Requirements: Supported, 33W / PD Protocol
Dock Charger: Not Supported
Environmental Requirements
Operating Temperature: -20°C~60°C

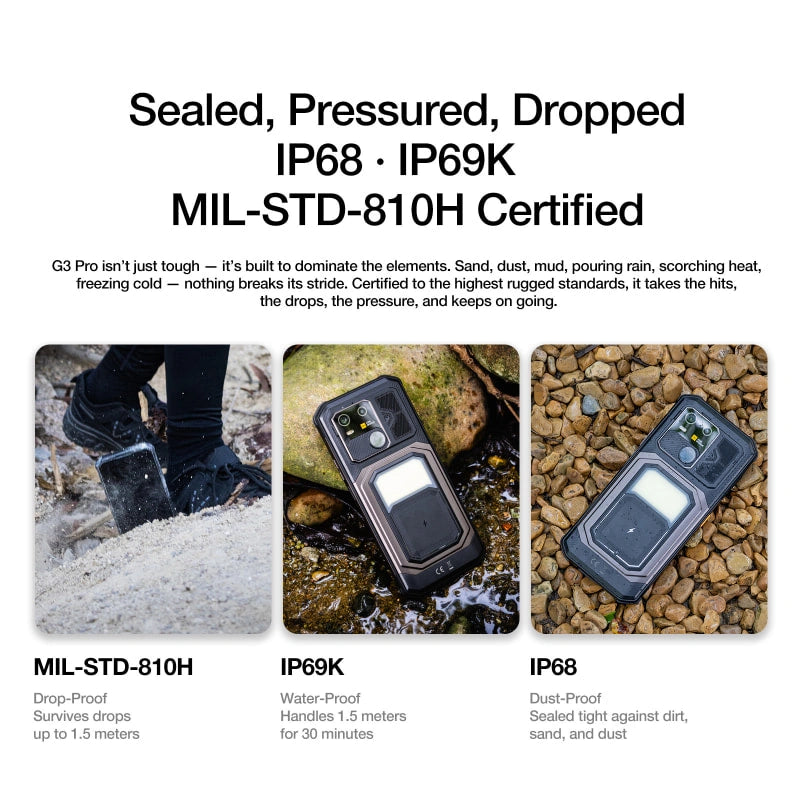

Protection Rating: IP68/IP69K/810H
